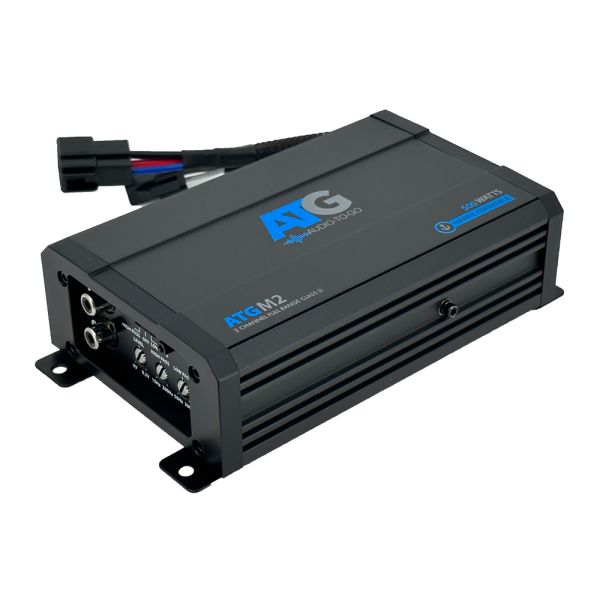

500W Class D 2 Channel Full Range Mini Amplifier
Price
$159.99
2 Channel Full Range Class D Amplifier
- 2 Channel Class D Full Range Technology
- 2-Ohm Stereo load Capability
- Marine Grade Nickel Plated RCA connectors
- Variable 12db Low-pass crossover
- Bridgeable Outputs @ 4-Ohms load
- Marine Grade Conformal Coated Double Sided PCB
- Compatible with any 4/2-Ohms Subwoofer
- Output Power @ 14.4 VDC, 2-Ohms 2 x 250W
- Output Power @ 14.4 VDC, 4-Ohms 2 x 125W
- Output Power @ 14.4 VDC, 4-Ohms 1 x 500W
- Power Supply Input Voltage 12.0VDC to 14.8VDC
- THD (1KHz @ 4-Ohms): 0.04%
- Bandwidth (-3 dB): 18Hz - 22KHz
- Damping Factor (1KHz @ 4-Ohms): 100
- S/N ratio (as weighted @ 1 Volt): 99db
- Input Sensitivity: .0.2MV - 6V
- Minimum Load Impedance: 2-Ohms
- Low-Pass filter range: 15Hz - 300Hz
- Sub-Sonic Filter Range: 50Hz - 300Hz
SKU
ATGM2
This powerful amplifier delivers clear, crisp sound even in the harshest marine environments. With its powerful 500W peak power and 2Ω stereo load capability, this amplifier can easily drive even the most demanding speakers. The Class D circuitry ensures that the amplifier delivers clean, accurate sound, while the marine grade components help to keep the amplifier cool even under heavy loads. The 500W Class D 2 Channel Full Range Mini Amplifier also features a variety of features that make it easy to use and customize, including a variable low pass crossover, bass boost, and sub-sonic filter.
Features:
Powerful 500W peak power
2Ω stereo load capability
Class D circuitry
Marine grade components
Variable low pass crossover
Bass boost
Sub-sonic filter
Benefits:
Powerful sound
Reliable construction
User-friendly features
Order your 500W Class D 2 Channel Full Range Mini Amplifier today and experience the difference!
| Manufacturer | ATG Audio To Go |
|---|---|
| upc | 854020008313 |
| Weight | 3.000000 |
| Length | 8.5 |
| Width | 9.25 |
| Height | 3.25 |
| Circuitry | Class D |
| Channels | 2 |
| Stereo/Mono | Stereo |
| Stereo Load Capability | 2-Ohms |
| RCA Connectors | Marine Grade Nickel Plated |
| Low-pass Crossover | Variable 12db |
| Bridgeable Outputs | 4-Ohm load |
| Compatible with | Compatible with any 4/2-Ohm Subwoofer |
| Output Power | 500 Watts |
| Power Supply | Input Voltage 12.0VDC to 14.8VDC |
| Total Harmonic Disorder | (1KHz @ 4-Ohms): 0.04% |
| Bandwidth (-3 dB) | 18Hz - 22KHz |
| Damping Factor (1KHz @ 4-Ohms) | 100 |
| Signal to Noise Ratio | (as weighted @ 1 Volt): 99db |
| Input Sensitivity | 0.2MV - 6V |
| Minimum Load Impedance | 2-Ohms |
| Low-Pass filter range | 15Hz -300Hz |
| Sub-Sonic Filter Range | 50Hz - 300Hz |
| Master Carton | 10 |
